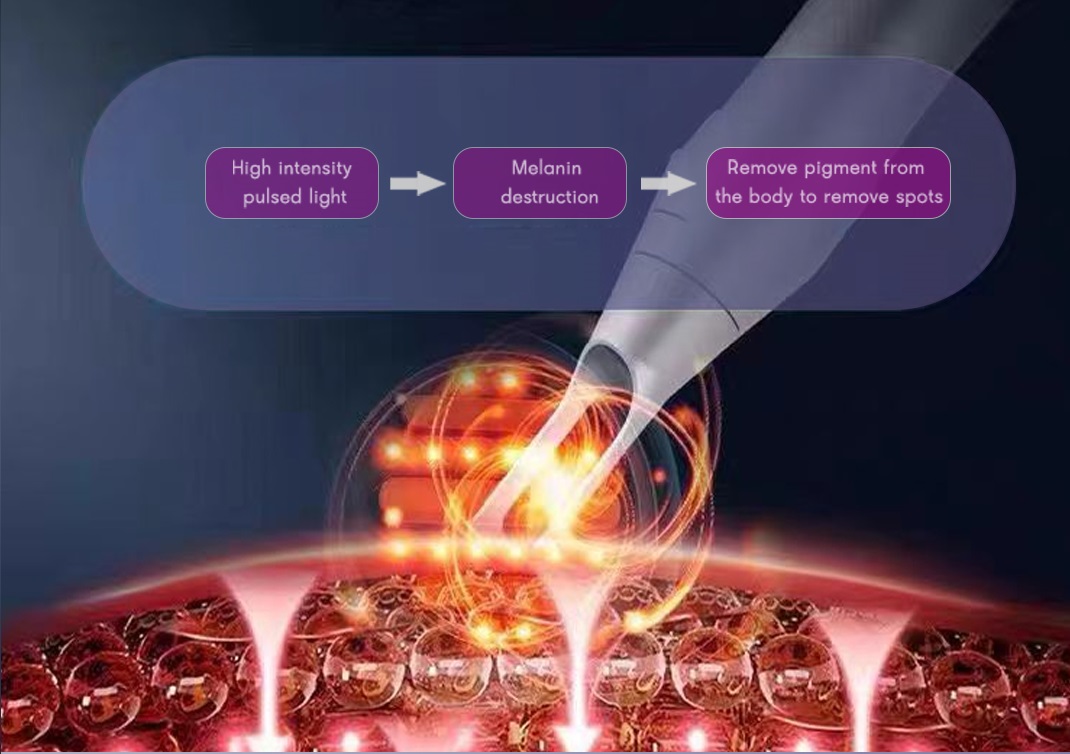

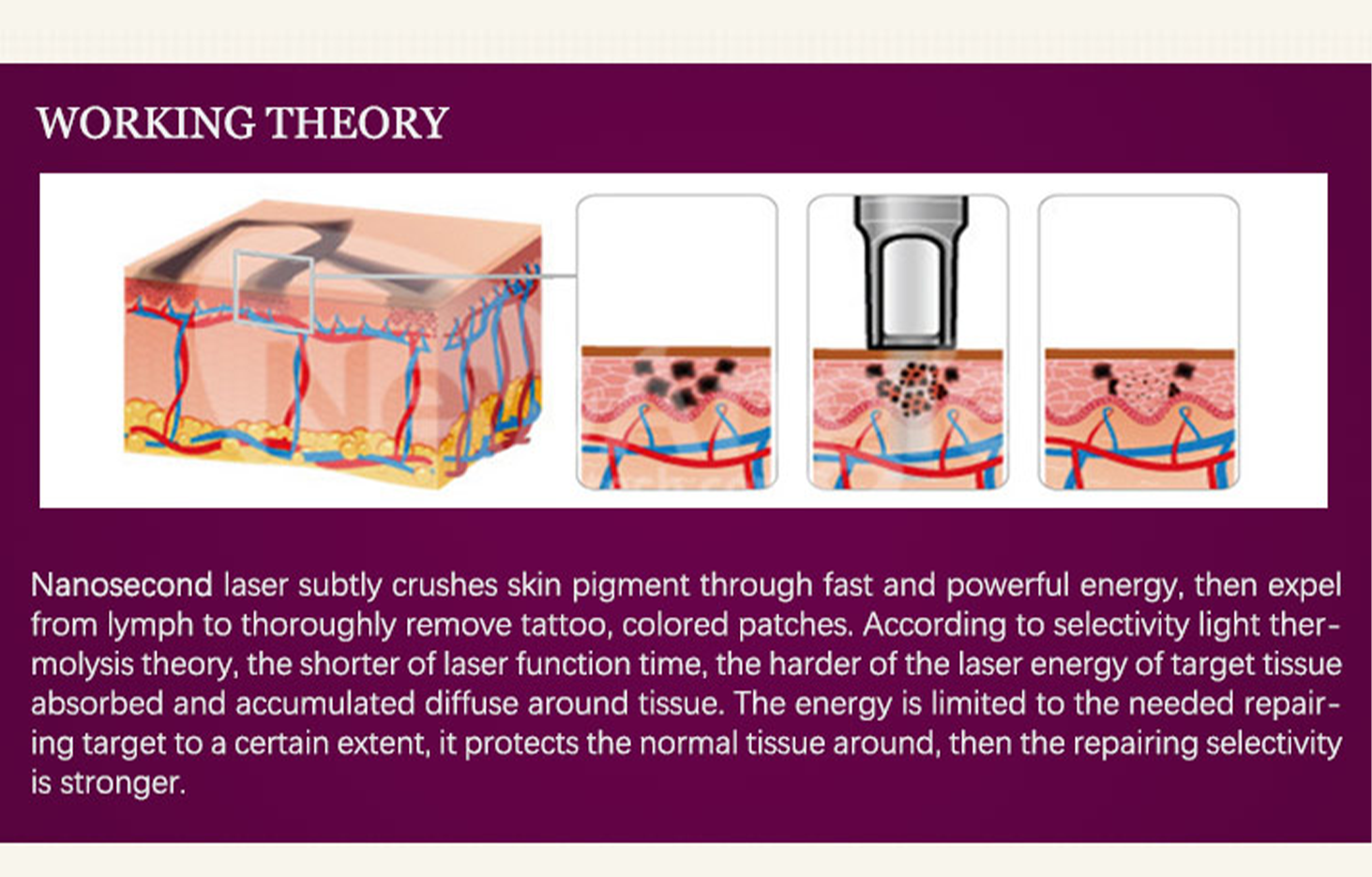

The specific laser wavelength will act on epidermis and dermis and on melanin. The pigments begin to swell and explode to tiny particles after absorbing this high energy laser. Some of them are shot from the body, the other parts are gradually removed by the metabolism.

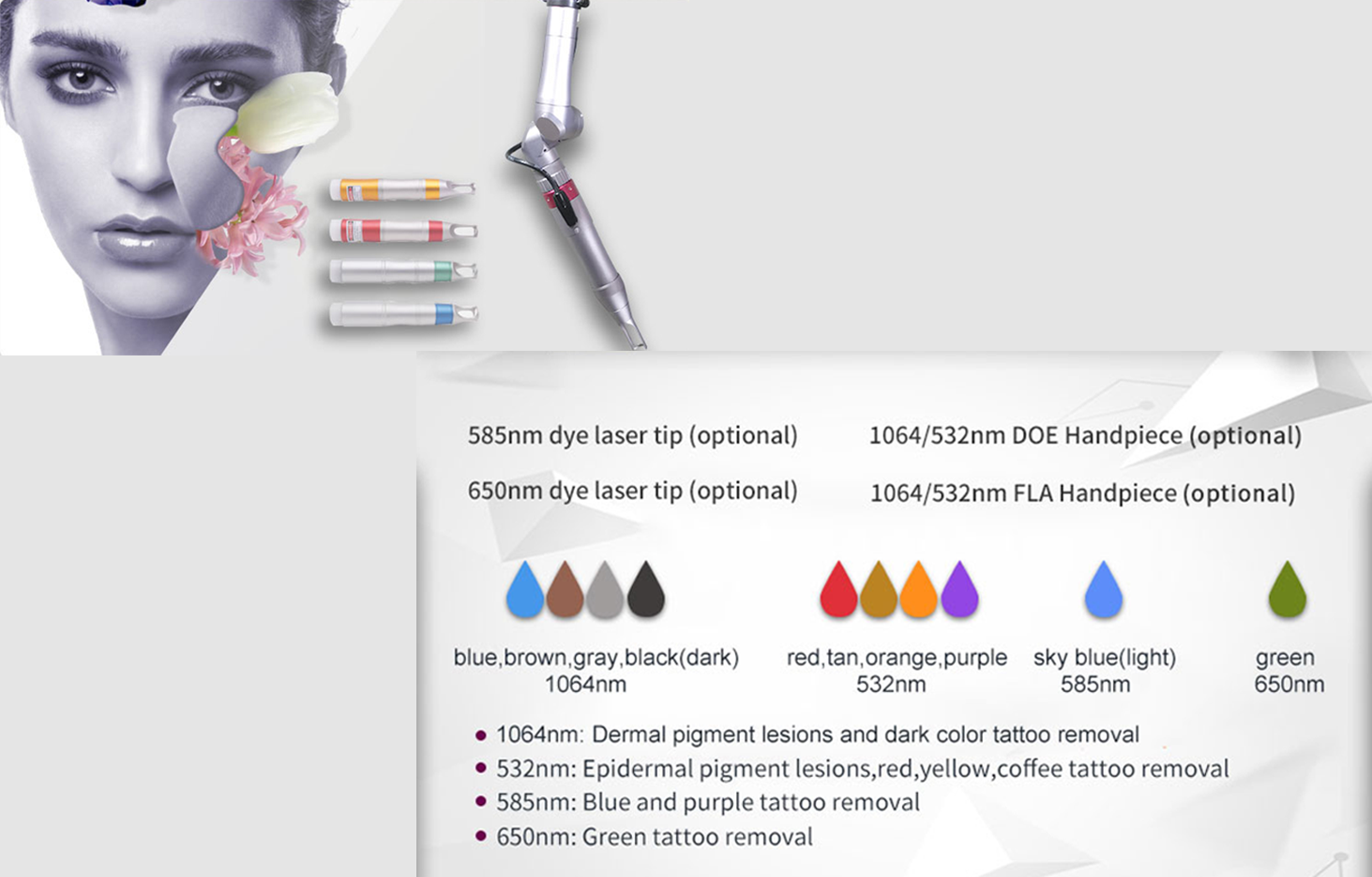

Treatment tips optional
1064nm: Dermal pigment lesions and dark color tattoo removal
It delivers high peak power and ultra-short pulse durations for a photoacoustic effect that transforms skin from the inside out.
Functions
Tatoo removal;
Pigment removal;
Wrikle removal;
Nevus removal;
Skin lifting ;
Sking whitening;
Carbon peeling;

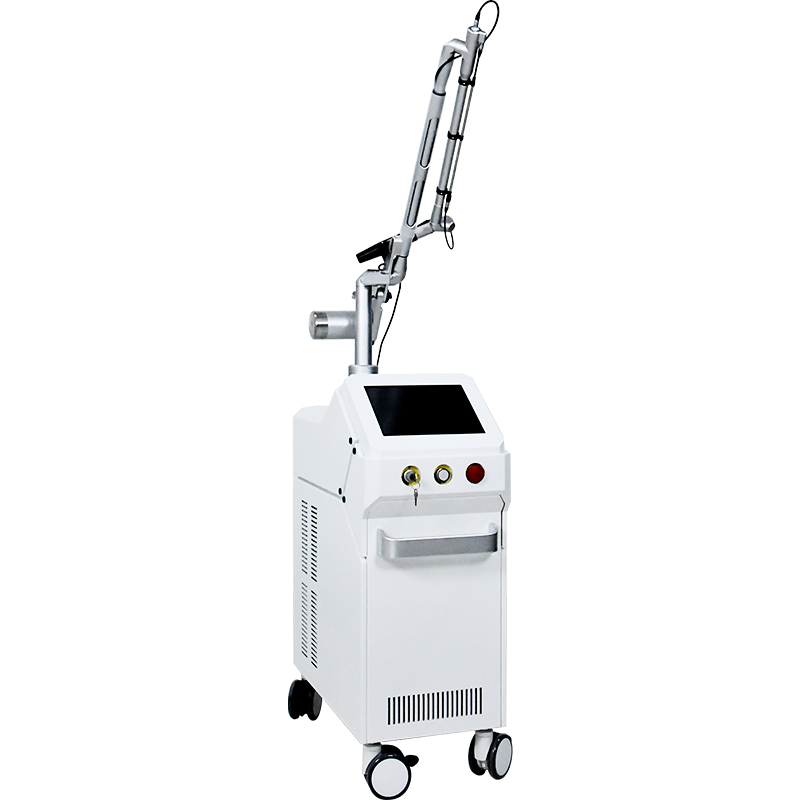

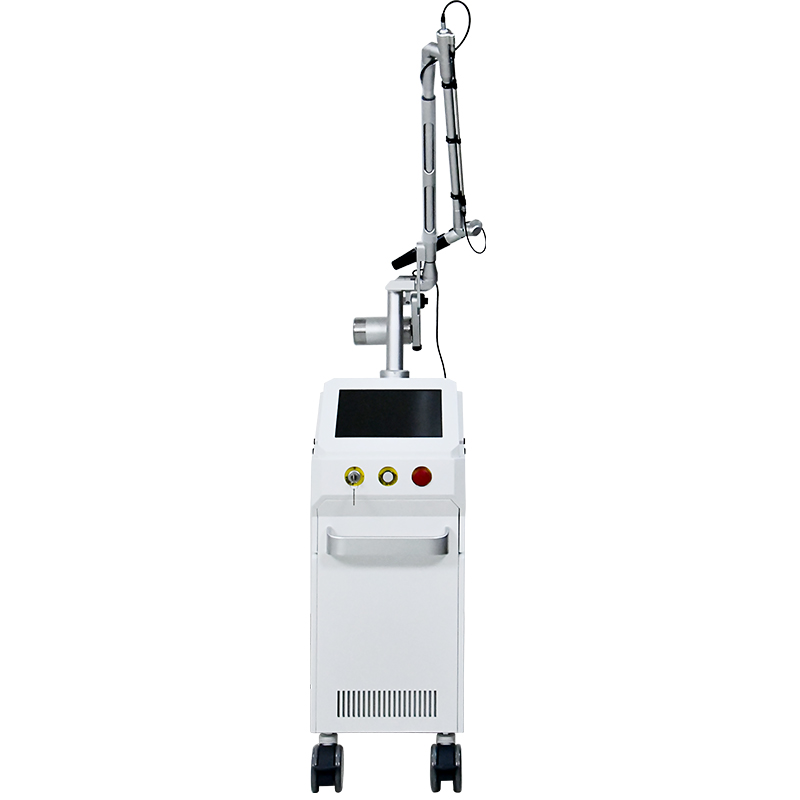

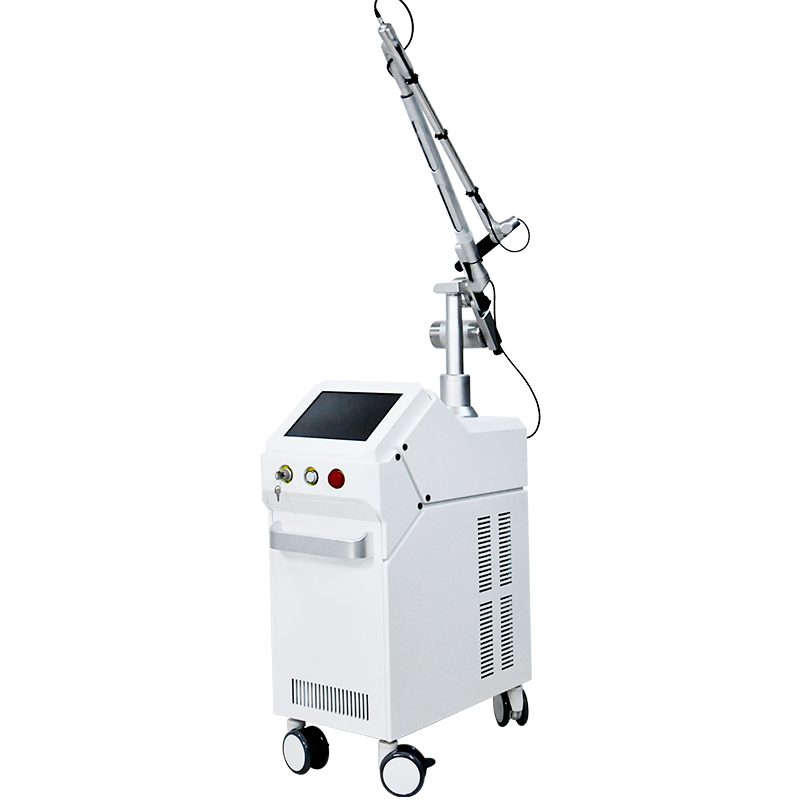

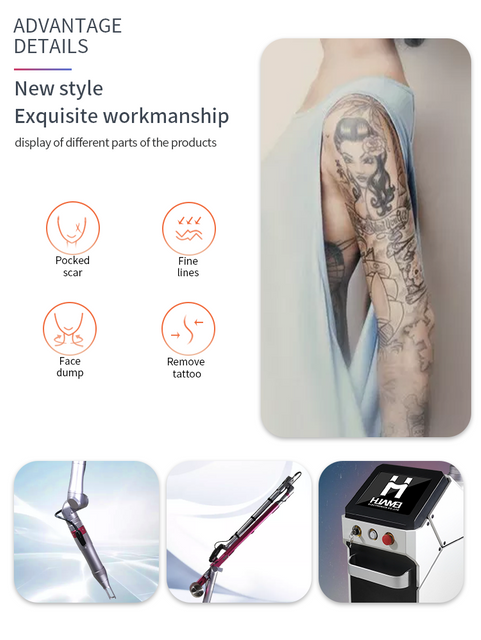

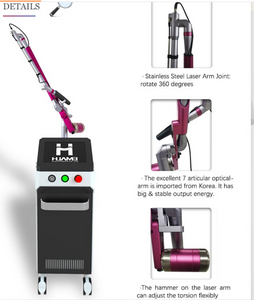

The laser arm is flexible and has excellent performance
7 Joints Articulated. Keep spot shape standard at any angle. Free 360° of rotation, ensure constant energy of laser power. Weight Balance hammer keep the arm always be safe.
Inside placed Lens Mirror for better result. 1-10mm spot sizes adjustable Uniform spot energy distribution Two modes: Double and single pulse, which can provide a very large energy range Energy density intelligent detection system
Laser advantage
Peak power: Nanosecond laser can release high energy in a short time, effectively decompose tattoo pigment particles, and improve removal efficiency. Small heat affected zone: Short pulses reduce thermal diffusion, reduce thermal damage to surrounding tissues, suitable for fine parts. Reduced side effects: Less heat damage means a lower risk of scarring and hyperpigmentation. Wide wavelength range: The nanosecond laser can be equipped with a variety of wavelengths, suitable for different colors of tattoo paint, improve the removal effect.
SYSTEM SHOWS
Humanized LCD operation System Design,Faster in reaction,More convenient inop-eration, More beautiful in outlook
USB updating technology:Add you company logo and Cartoon on the LCD screen
Leasing Rent soft ware programme:No need IC card, only a phone call can solve theproblem of RENT business
Effect comparison
Suitable for a variety of occasions, the effect is obvious, efficient, accurate, fast recovery, high safety
01
06
Product Specifications
Model
YL900-1
Technology
Q-switch Nd:YAG laser
Screen
12.4 inch color touch screen
Input voltage
AC 110V/220V 50-60Hz
Wavelength
532/1064nm
Beam profile
Flat-top mode
Optical delivery
Articulated arm
Energy calibration
External & self-resoration
Operate mode
Q-switched mode & SPT mode
Pulse width
≤6ns (Q-switched mode) 300us (SPT mode)
Spot size
2-10mm
Reprtition rate
Max.10Hz(1064nm,532nm,STP mode)
Aiming beam
Diode 655nm(Red),brightness adjustable
Cooling system
Advanced Air & Water cooling system & semiconductor cooling
Pulse energy
Q-switched1064nm
Q-switched532nm
SPT mode1064nm long pulse
Double pulse
100mJ-1200mJ
50mJ-480mJ
100mJ-2000mJ
Single pulse
100mJ-800mJ
50mJ-320mJ
100mJ-1000mJ
Machine size
76*41*176cm
G.W
90KG
Clients around the world
20 +
YEAR
The company was established more than 20 years, reliable quality, safety and security
120+
COUNTRY
The machine is resold in more than 120 countries and regions, and more than 50 countries have done dealers
10 +
CERTIFICATE
There are various authority certification certificates, CFDA, TUV CE, MHRA, MDSAP, ISO13485,ROHS, EMCCE, LVD CE, Declaration of conformity and so on
